Fully Electric/Hydraulic Universal Operating Table(OT-2000 Series)

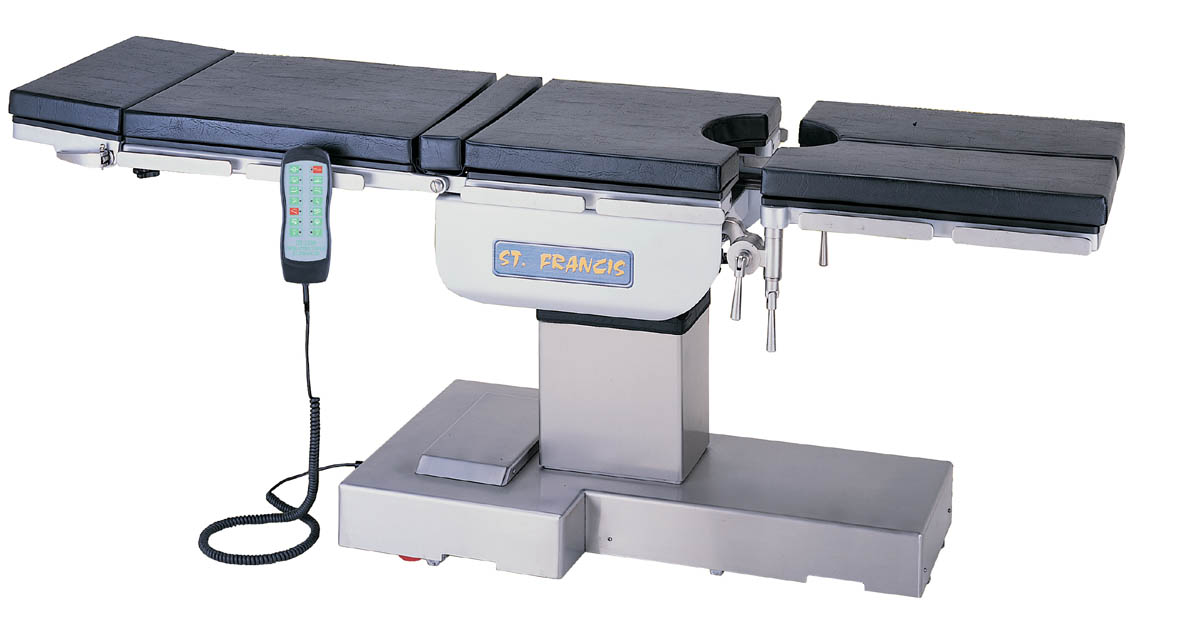

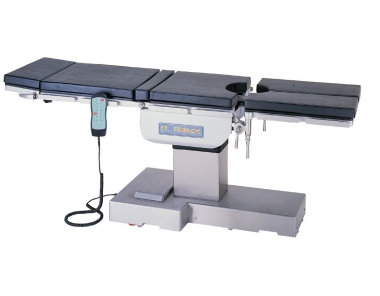

Fully Electric/Hydraulic Universal Operating Table OT-2100

Model No: OT-2100
Approval / Certification:
CE, FDA, GMP, ISO 9001, ISO13485
Made in:
Taiwan, ROC

Downloads

OT-2200.2100_catalogue.pdf

FULLY ELECTRIC UNIVERSAL OPERATING TABLE
The latest multi-function operating table is providing general surgery as:
Urology, Gynaecological, E.N.T., Opthalmic, Rectal, Neurosurgical and Orthopaedic procedures.

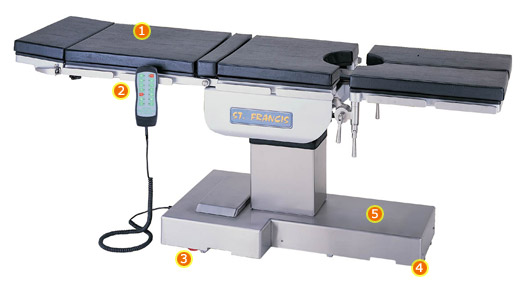

	Table to consists of five sections coverd with detachable electric conductive fiber mattress to provide high performance flexibility. The head and leg boards can be removed manually.

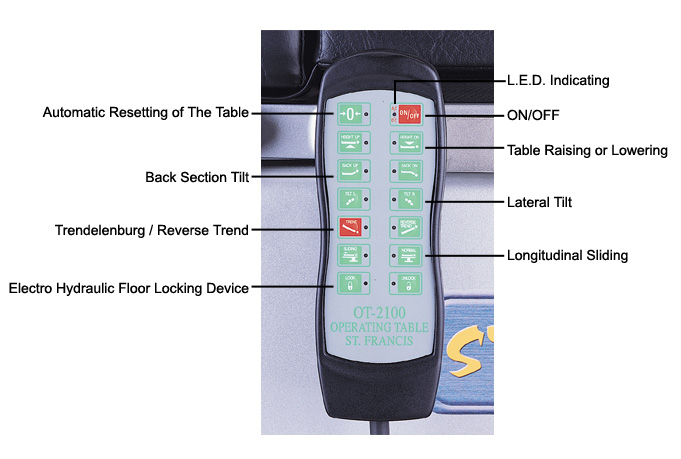

	Touch-screen coiled remote hand controller with precisely designed program provides versatile table top movement safety and precisely patient position.
	4 castors can roll both longitudinally and laterally.
	4 electro-hydraulic floor locking supporters with auto-balance system keep the table stable.
	The T-shaped base lends the table excellent stability and provides easy access for surgical team.

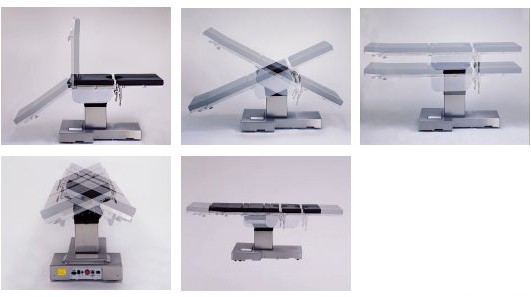

Table top longitudinal slides up to 35cm to get the maximum radiolucent field for free access C-ARM without moving the patient or extra extensions on table top.	Two separate boards can be adjusted up, down or split tilt angle position.

X-ray photography table top offers whole body image amplication coverage.

FEMORAL STEM FRACTURE LATERAL POSITION	KNEE AND NECK OF FEMUR POSITION
TIBIA AND FIBULA FRACTURE POSITION	NOSE AND THROAT PROCEDURES
SURGICAL OPERATION FOR HAND AND ARM	DORSAL POSITION
VERICAL USE OF C ARM X-RAY	MEUROSURGICAL POSITION
KIDNEY POSITION	RECTAL POSITION
GYNECOLOGICAL, UROLOGICAL AND LITHOTOMY POSITION

Back

OPTIONAL ACCESSORIES

CHEST/ABDOMINAL SUPPORT (NO. OT-1730)	FOOT SUPPORT (NO. OT-1724)	INSTRUMENT TRAY/S.S. (NO. OT-1725)	CYLINDRACEOUS SUPPORT/S.S. (NO. OT-1726)


FUNNEL AND WAST RECEPTACLE AND CORRUGATED TUBING/S.S. (NO. OT-1718)	TABLE FOR HAND AND ARM SURGERY/S.S. (NO. OT-1719)	U-SHAPED HEADREST/S.S. (NO. OT-1720)	RESTRAINT STRAP (NO. OT-1620)


INFUSION ROD/S.S. (NO. OT-1721)	ORTHOPAEDIC DEVICE WITH CART FOR LOWER LIMBS/S.S. (NO. OT-090)	HEAD CUSHION (NO. OT-1723)	KIDNEY ELEVATOR (NO. OT-1740)

Descriptions Model Number	OT-2100
Table Dimension /mm
Table Top Elevation

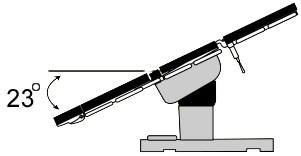

Trendelenburg / Reverse Trend
Lateral Tilt (Left / Right)
Back Section (Up / Down)
Head Section (Up / Down)
Footplate (Up / Down / Split Tilt)
Table Top Longitudinal Slide
Ups Battery Device	OT-2100 Optional Accessories / OT-1717
Elec. AC Input	110V OR 220V, 50 / 60Hz
Remote Controller Power	DC 12V
Table Weight (Approx)	285
Mattress Thick	5.5CM
Patient Weight Capacity	180KGS
Safety Standards	EN 61010-1, EN 1441,EN 60601-1-1-2, EN 60555-2, EN 61000-3-3, IEC 801-3, IEC 801-4, EN 60601-1


ABDOMINAL SUPPORT (NO. OT-1727)	RAISED ARMREST/S.S. (NO. OT-1728)	TABLE TOP X-RAY RADIOGRAPHY SHEETS (NO. OT-1729)
